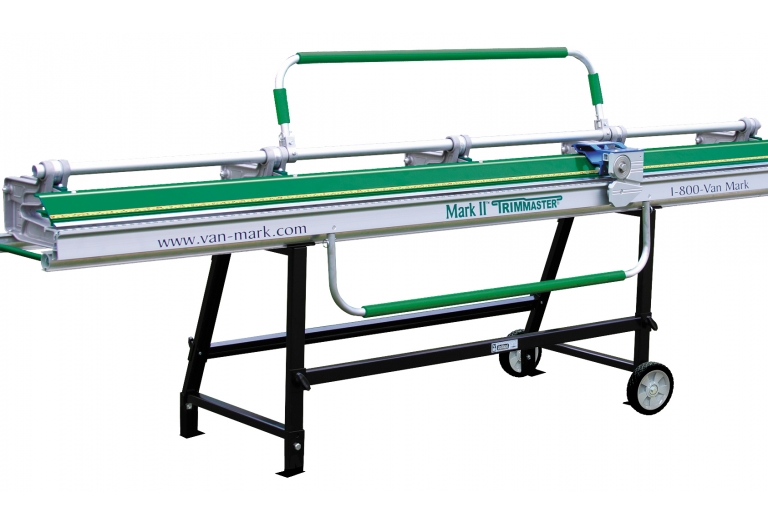

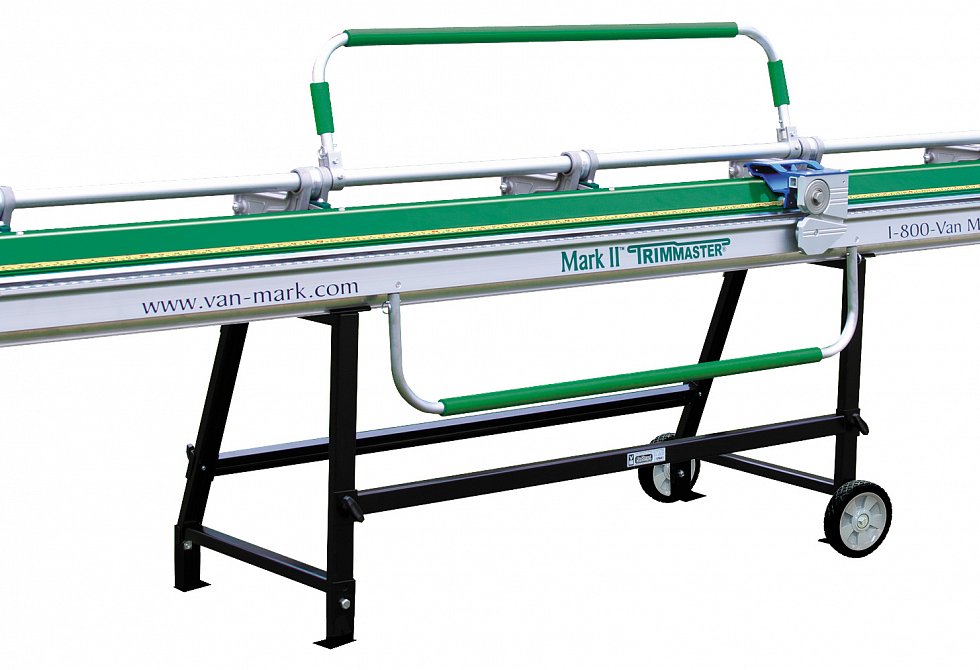

The Mark II TrimMaster® is accurately and artfully engineered to be the workhorse for any remodeling contractor. Versatile in its ability to perform various complex bending profiles with ease. Go from bending simple flashing to intricate outside corner posts without making any adjustments to the bending brake. The POWERslot™ Hinge “auto-measures” to a 5 ⁄ 8" bend to make tight pockets for vinyl siding and fiber cement boards. The durable Cam-Locking has proven year after year to be reliable without constant adjustments.
- POWERlock™ provides a strong clamping without need for adjusting when changing material.
- POWERslot™ hinge "auto-measures" 5 ⁄ 8" hem with ease.
- Increased bending radius simplifies hemming & over-bending resulting in faster, easier operations.
Model Number TM10-S - Length 10'6" (3.20 m) - 5 Castings - Weight 123 lbs (55.9 kg)
BENDING CAPACITIES*
Material / Maximum Thickness
Aluminum (3003H14) / .027"
Galvanized Steel / 29 ga.
Painted Steel (Grade D) / 29 ga.
Roofing Copper / 24 oz. soft
Zinc / .032" soft
Stainless Steel (304L) / 29 ga.
